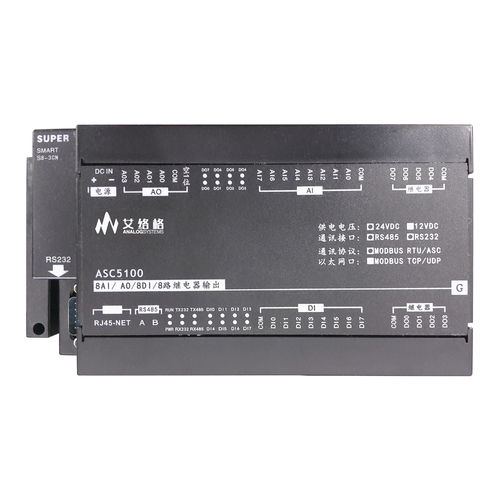

Communication gateway ASC5100

IoTRS232IP20

System Parameters CPU：American import chip, 32 bit ATMEL ARM high speed processor, 72MHZ Operating System：Nucleus/uCOS，10ms scheduling mechanism Power supply：24VDC，Power consumption≤3W Power protection: lightning protection, anti-fault access, isolation DC Sun Yang DCDC design, 2500V lightning protection Dimensions: Volume (L*W*H): 180 x 108 x 77 (mm) Installation: screwed or rail mounting Environmental indicators：-40～85℃，5%～95%RH non-condensing, IP20 protection, three anti-paint protection Hardware Watchdog: 1.5 seconds hardware watchdog protection system Channel design: all channel power, signal apply isolated design; product come to use since 1997; with 17 years’ cumulative application RS232/RS485 parameters Number of channels：1 RS485，1 RS232 baud rate：1200～115200，the default 9600 Parity check：odd check, even check, without check（Default: without check） Start bit：1bit Data bits：8bits Stop bits：1、2 bit（Default：1bit） Communication protocol：MODBUS RTU(By default)、MODBUS ASCI protocol； Select through configuration software Defaulted communication mode：9600.N.8.1，Station No.：1
