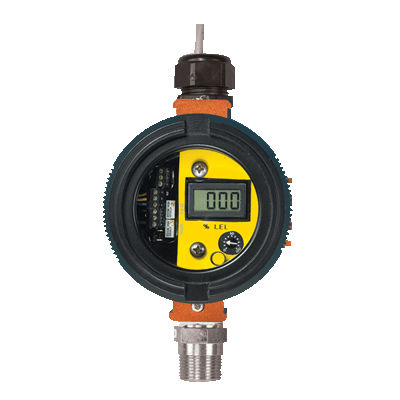

Methane gas transmitter C12-17

propanecatalyticexplosion-proof

ATI's C12-17 Combustible Gas Transmitter is a stand-alone gas transmitter designed to detect potentially hazardous concentrations of combustible gases in ambient air. Gases and hydrocarbon vapors such as methane, propane, butane, gasoline, toluene, hydrogen, and many others can be reliably monitored in process buildings, analyzer enclosures, pump stations, and gas compressor stations. In fact, anywhere gases or vapors may build up to explosive levels can be readily monitored using this transmitter. C12-17 Combustible Gas Transmitters are three-wire transmitters, operating from 24 VDC power supplies and transmitting a 4-20 mA signal proportional to 0-100% LEL (Lower Explosive Limit) of a particular gas or vapor. The gas transmitter is available either as a blind transmitter or with integral LCD display that provides local indication of gas concentration visible through the glass window in the explosion-proof housing. Gas transmitter units supplied with the integral display also contain a single alarm set-point and relay for local alarm purposes. This integral relay is a latching alarm that can be reset with a magnetic tool without opening the enclosure. C12-17 gas transmitters can be connected directly to PLC, DCS, or computer based alarm systems without additional hardware.
