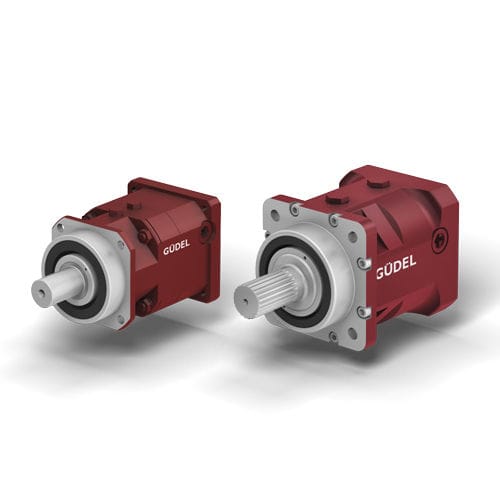

Planetary servo-gearbox NR 080

solid-shaft200 - 500 Nm100 - 200 Nm

This range of planetary reducers is designed for use with servo-motors in all kinds of industrial applications with a focus on cutting machines (laser, water-jet, plasma, stone, etc.) and routers. The compact dimensions allowed by the planetary construction and the availability of 4 backlash precision classes insure cost effective solutions that meet the necessary application precision. The in-line configuration can be mounted in horizontal, vertical or any position. One two or three stages allow for ratios from 3:1 to 1000:1. Servo-motors are easily adapted to the input and output options include integrated pinion, output shaft (plain, keyed or splined), or hollow bore. The two sizes extend the range of Andantex SRP planetary reducers so that all axis requirements on a machine can be provided by one supplier. Two sizes each with three ranges of torque capacity In-line configuration mounted in any position 1, 2 and 3 stage arrangements available with ratios from 3:1 – 1000:1 Five standard output arrangements (smooth, keyed, splined, integrated pinion, or hollow bore) along with customized solutions Four Standard Backlash precision levels < 1, 3, 5, or 12 arc-minutes with < 0.5 arc-min. on request
