Bevel gearbox Z series

spiral bevelmodularshaft

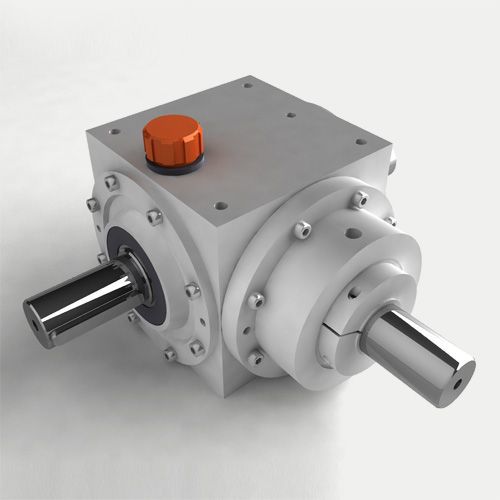

Spiral Bevel Gearboxes The Z-Series spiral bevel gearbox product line offers 7 different sizes, 6 model types, and 9 ratios, with various input-output arrangements including solid shaft or hollow bore options, as well as universal mounting capability. All of these options are made possible by a modular design concept that starts with a cubic housing. The Z-Series is an extremely versatile product line, meeting virtually all of the technical offices requests. Additional designs: ZT Series Used as multipliers (Reduction ratios = 0.5 ; 0.67) ZD Series Manual slide dog clutch, including a neutral. ZI Series The same as ZD With manual forward neutral and reverse. ZR Series Spiral bevel gearbox with reinforced hollow bore. Features 9 Reduction ratios: 0.8; 1; 1.25; 1.5; 2; 3; 4; 5; 6 7 Sizes Extremely versatile (solid shaft, hollow bore, splined or keyed shafts, motor flanges) Spiral bevel gears (HPG-S on request) Low backlash (as low as 3 arcmin on request) Efficiency of 95 – 98 % Max rotation speed up to 6000 RPM ATEX compatible design (ATEX versions on request)
