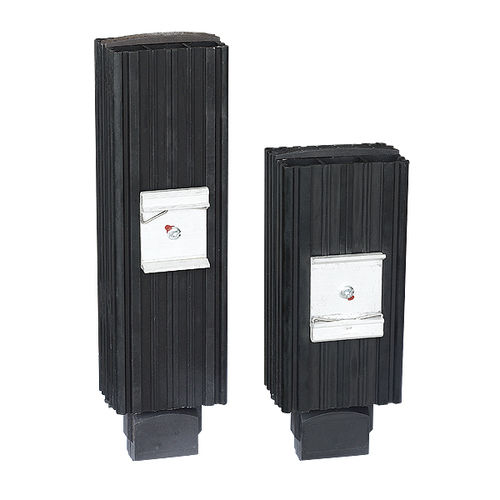

Stainless steel heater PTC

compact

PTC Heater 15-150W HG140 1.Application lectrical & Electronic enclosures Telecommunications systems Display panels Automatic teller machines(ATM'S) Access & Parking control systems Ticket dispensers 2.Determining the required heater size PH=(A x ΔT x K)-PV PH=Required heating power for your application in Watts(W) PV=Heating power generated by existing components(e.g.a transformer)in Watts(W) A=Exposed enclosure surface area in square meters(m2) ΔT=Temperature differential between the desired minimum interior temperature and the Lowest possible external temperature of the enclosure in Kelvin(K), 1.8˚F=1˚C=1K K= Heat transmission coefficient of the enclosure material. used: Painted steel:5.5W/m2K Stainless steel:3.7W/m2K Aluminum:1.2W/m2K Polyester/Plastc:3.5W/m2K For outdoor appllcations it is recommended to double the heating power. Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end custome/buyer in its final application. Compact heater in PTC technology Maintains minimum operating temperatures in enclosures Helps to prevent failure of electronic components caused by condensation and corrosion Heating power adjusts to ambient temperature Push connectors for quick and easy wiring DIN rail mountable CE
