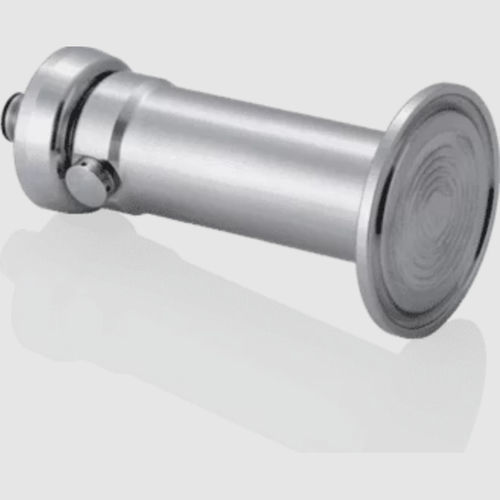

Relative pressure transmitter P42
absolutevacuum4-20 mA

Relative pressure transmitter - P42 - Anderson-Negele | Negele Messtechnik GmbH - absolute / vacuum / 4-20 mA
Relative pressure transmitter - P42 - Anderson-Negele | Negele Messtechnik GmbH - absolute / vacuum / 4-20 mA
Relative pressure transmitter - P42 - Anderson-Negele | Negele Messtechnik GmbH - absolute / vacuum / 4-20 mA - image - 2
Add to favorites
Compare this product


Characteristics

Pressure type
relative, absolute, vacuum
Output
4-20 mA, IO-Link
Supply voltage
24 Vdc
Fluid
for liquids
Material
stainless steel
Protection level
IP67
Other characteristics
compact
Pressure range

Min.: 0.2 Pa
(0 psi)

Max.: 4,000,000 Pa
(580.15 psi)

Precision

0.25 %

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 300 °C
(572 °F)

Description

Pressure Sensor P42 with IO-Link or P41 without IO-Link Precise pressure sensor and transmitter for temperature compensated process control in pipes or level control in vessels compact design, completely made of stainless steel expremely robust and durable relative, absolute or compound pressure range (relative with vaccum) Vacuum resistant All details about IO-Link properties, parameters, diagnostics, events and more can be found in the IODDViewer.
