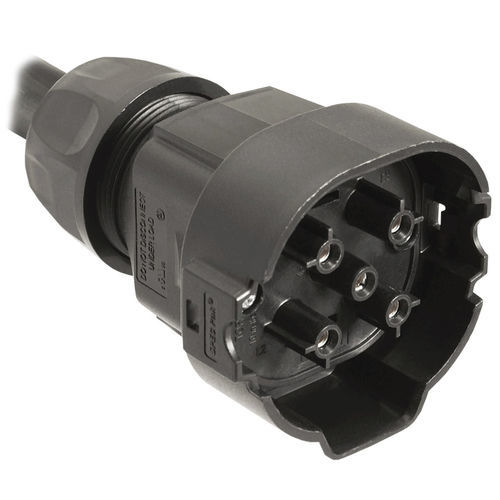

Electrical power supply connector SPEC PAK®

femaleplasticIP68

MID POWER SPEC Pak® INLINE RECEPT.KIT, 8awg • The 5P Mid Power SPEC PAK® is rugged and environmentally sealed connector rated to IP68. • Items leverage a Pin and Socket contact technology, offering power handling capabilities up to 60 amps at 600 volts. • A secure & sealed alternative to NEMA and IEC three phase AC connections with improved power density. • Chemical & UV Resistant shells offer operating temperatures of -40 to 105°c [-40 to 221°F]. • Touch safe female side holds socket contacts • Connector accepts individual or jacketed cables for wire sizes of 10 or 8 AWG [6.0 to 8.4mm²]. • Keying features within the housing design allows for multiple connectors to be used side by side. • Available in Wire to Wire or Wire to panel configurations. • Stainless Steel Latches to prevent accidental unmating. • Sealing Gland ensures IP68 environmental seal.
