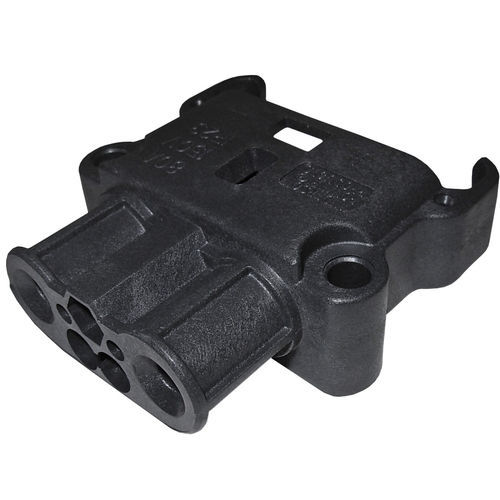

Compact housing EBC 80

rectangularpolymerindustrial

EBC 80 Female Housing Only • The Anderson™ family of Euro Battery Connectors (EBC) are expertly designed for ease of use and incorporate an innovative contact carrier to simplify assembly. • The EBC connectors include the industry standard 80, 160, and 320 sizes, all in accordance with DIN 43589-1. • Design and materials offer performance that meets or exceeds all the requirements of EN1175-1. All Materials chosen are RoHS compliant and selected to ensure years of reliability in adverse industrial environments. • These attributes make the EBC DIN connectors the ideal choice for a wide range of industrial applications in Material Handling, Battery Charging, Utility Vehicles, Motive Power, and Sweepers/ Scrubbers amongst many others. • Safety Agency Approvals - UL, CSA, and EN1175-1:1998 • Meets DIN 43589-1- Offers dimensional compatibility for housings, contacts and air tubes. • Voltage Keying - EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. • Sturdy Advanced Polymer Housings - Provide superior resistance to impact, acid and temperature extremes. • Silver Plated Copper Contacts - Provide excellent conductivity and superior mating cycle performance.
