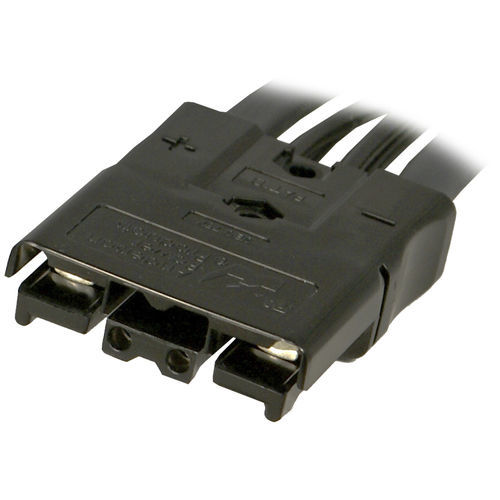

Compact housing SBS®75X

rectangularpolycarbonatefor connectors

Black SBS®75X Standard Housings - Up to 110 amps • Polycarbonate housings feature 4 auxiliary and 2 primary positions all finger proof. Genderless design mates with itself, or the PCB connector. Mechanical keys are color coded. • The patented SBS® connector family is designed to provide high power in a compact ergonomic housing with protection against accidental contact with live circuits. • This is of particular importance in applications where DC voltages exceed 30 volts and can be health threatening. • Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. • The SBS®75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. • The SBS®75G features a third first-mate last-break ground or power contact. • All contact positions are rated for circuit interruption (hot plugging). • Touch Safe Interface can safely be used in through panel applications and minimizes potential contact with live circuits per IEC 60950 • Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs • Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
