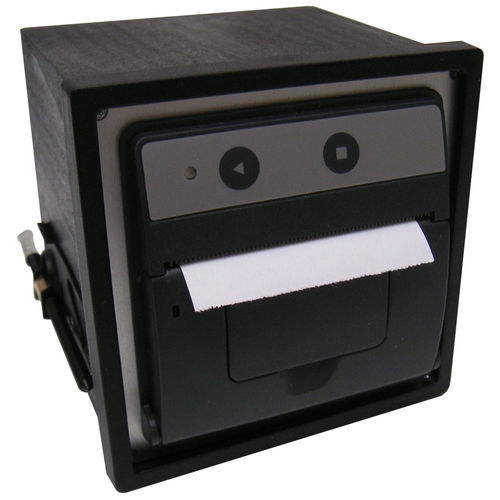

Direct thermal printer MTH-2700

for integrationmonochromeindustrial

The MTH-2700 thermic printer is the same version as the MTH-2500, except that the MTH-2700 printer is integrated in a DIN 96x96 case. The little size of this MTH-2500 printer involves a little dimension of the paper. Also, the paper loading was thought to be very easy. • DIN 96x96 case • Depth 85 mm • Easyloading printing module • Fast printing up to 50 mm/s with 200 dpi • 24 or 42 characters per line depending of the selected font • 2 different fonts • Paper feed button • RS232C or TTL Interfaces • Red LED indicator on front panel • 5V DC power supply or 9 to 40V DC or 230 VAC • Paper-end detection • Integration depth : 27 mm • Interfaces ◦ Serial RS232C ◦ USB 2.0, Printer class ◦ Parallel interface on an Add-on Card ◦ Ethernet  Raw TCP/IP (for printing on the netwrok from a computer with a driver) ◦ Ethernet  Modbus over TCP (for printing from a Modbus terminal) ◦ RS422/RS485 (In reception only) or RS422 with  Modbus over serial (RTU) protocol • Red LED indicator on front panel • 5V DC power supply or 9 to 40V DC on an Add-on card • Paper-end detection • 8Kb Flash memory for Downloading a logo. It can be printed by closing a TTL input • Software controls ◦ MTH: Andig proprietary language ▪ Print texts, diagrams, graphic curves, bar codes ◦ PCL Raw compatibility (graphic) ▪ Supported compressions: No compression, Run Length, Tiff4, Delta Row ▪ Adjustable horizontal and vertical reduction to fit the printout in the paper width
