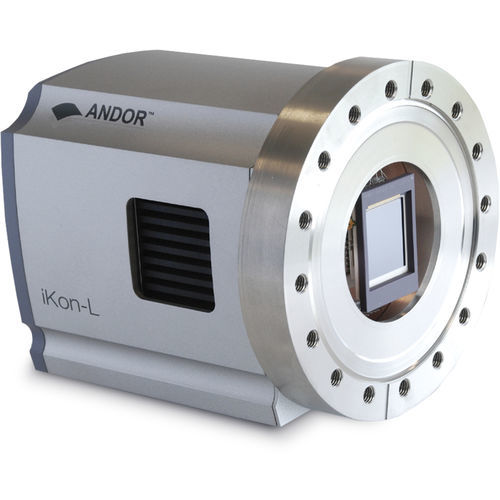

Pipe inspection camera iKon-L SO

HDRmachine visionX-ray

Andor's iKon-L SO is a revolutionary large area CCD platform, offering back illuminated (> 90% QE) full frame sensors up to 4MPixel(2k x 2k), 1 MHz readoutand unparalleled priority TE cooling down to –100°C. • Open front end • Peak QE of 95% • 13.5 x 13.5 μm pixel size • Large area 2048 x 2048 sensor • TE cooling to -100°C Andor’s iKon series offers outstanding sensitivity performance through a combination of > 95% QE back-illuminated sensors, low noise readout electronics and industry-leading, maintenance-free deep TE-cooling down to -100°C. It features high resolution 1 and 4.2 Megapixel large area sensor options (with 13 and 13.5 µm pixels respectively) for simultaneous high dynamic range and high spatial resolution imaging in the VUV and soft x-ray range. Windows, Linux & Labview - Andor’s user-friendly SDK supports both Windows and Linux OS. LabView VI package available. Integrated in EPICS - Seamless integration and operation at EPICS-based particle accelerators. Filter and filter holders options - Accommodate beryllium (or aluminium) windows with thickness down to 200 ?m for removal of unwanted lower energy radiations (< 2 keV). Ø45.5 mm supported for iKon-M and Ø60 mm for iKon-L. Open-front to standalone converter options - Provides maximum flexibility – camera can attach directly to a vacuum chamber, or be used as standalone with a beryllium filter. A convenient 16-point, knife-edge sealed 6” rotatable CF-152 flange provides a robust and highlyeffective seal to any compatible vacuum chamber interface. The iKon-M and -L also offer a USB2 interface and Labview or EPICS compatibility for seamless integration into complex setups.
