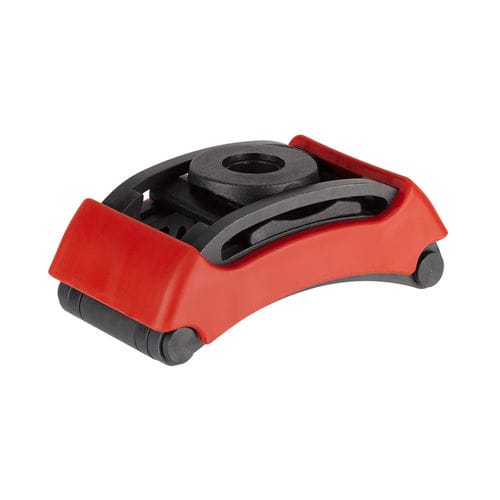

T slot clamp 6310 series

T slot clamp - 6310 series - ANDREAS MAIER GmbH & Co. KG (AMF)
T slot clamp - 6310 series - ANDREAS MAIER GmbH & Co. KG (AMF)
T slot clamp - 6310 series - ANDREAS MAIER GmbH & Co. KG (AMF) - image - 2
Add to favorites
Compare this product


Characteristics

Applications
for T slot

Description

The clamp is used for all clamping tasks in which clamping is effected via T-grooves, grooves and threaded bores. For clamping, either clamping screws DIN 787, stud bolts DIN 6379 and cheese head screws DIN 912 can be used. A washer disc DIN 6340 must always be used between the hexagonal nut and compression piece! Weight-saving thanks to lightweight design. Variable and fast adjustment option at a distance from the workpiece. No additional clamping supports are needed to reach the required clamping height. The shim cannot be detached from the clamp.
