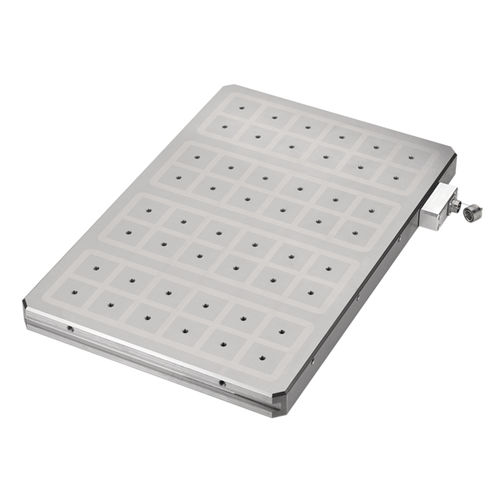

Square clamping plate 2950-50

magnetic

Magnetic chuck with square pole technology in monoblock design and very strong holding forces. For positioning, clamping and machining magnetisable materials. In conjunction with pole extensions also particularly suitable for the 5-sided machining of workpieces. Magnetic chuck with metallic surface. This special and high-quality design enables the strongest holding forces to be reached in magnetic clamping technology with square pole technology. The maximum stated holding force is specified for the complete allocation of all poles. One particular advantage is the low design of 43 mm. This enables the dead weight to be very low and reduces the machine table load considerably. In the event of possible damage to the surface, this can be reworked up to 4 mm in order to restore the original surface quality. The magnetic chucks have a height tolerance of + / - 0.02 mm in the delivered condition, but an even smaller height tolerance can be offered at any time on request. The plug contact for the control unit is a water-resistant push-pull plug incl. protective cover. The optimum holding forces are reached from a workpiece and material thickness greater than 12 mm. A clamping slot is also available on both sides of the faces for fastening to the machine table. Mounting holes can also be incorporated into the magnetic chuck. A drill plan at AMF is required for this. The M8 internal thread for fastening the pole extension is directly aligned centrally - without a threaded bush - in each pole.
