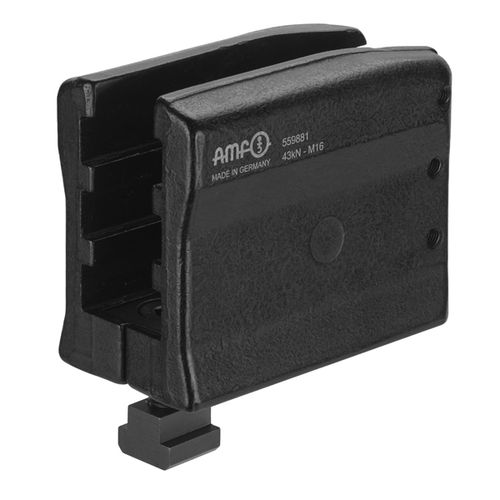

Mechanical clamp 7630T
steeladjustableforged

Mechanical clamp - 7630T - ANDREAS MAIER GmbH & Co. KG (AMF) - steel / adjustable / forged
Mechanical clamp - 7630T - ANDREAS MAIER GmbH & Co. KG (AMF) - steel / adjustable / forged
Mechanical clamp - 7630T - ANDREAS MAIER GmbH & Co. KG (AMF) - steel / adjustable / forged - image - 2
Add to favorites
Compare this product


Characteristics

Type
mechanical
Other characteristics
steel, adjustable, forged
Clamping force

22 kN, 30 kN, 43 kN, 49 kN

Description

Carrier element 3-step Made of alloyed tempered steel, forged and black galvanized. Complete with pressure plate and mounting kit 7630BFS. Note: - The max. load may differ, depending on the manner of clamping and condition of the threads (lubrication). - To reduce the wear on the adjusting screw, we recommend the use of AMF screw compound no. 6339. It possesses a synergistic combination of highly-effective solid lubricants and is heat-resistant and does not wash out. - Use only the corresponding AMF mounting kit No. 7630BFS - Not suitable for use on injection moulding and die-casting machines and presses. Advantage: - Captive feature by means of threaded stud at all levels - 3-fold continuously adjustable adjustment range - High clamping forces of 22 kN - 49 kN - The very robust design enables quick and easy clamping - For use in T-slots 14 - 28 mm or grid plates M12, M16, M20
