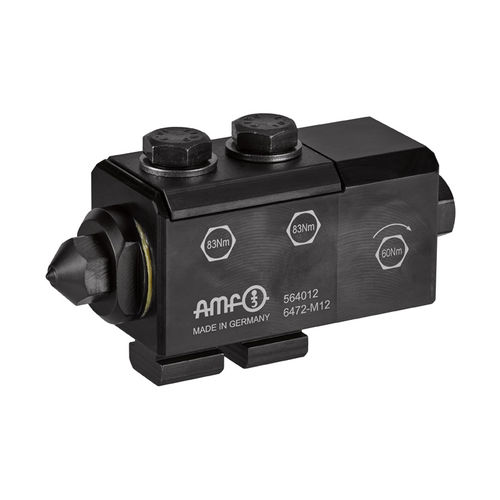

Lateral clamp 6472mechanicalcompacthorizontal
Add to favorites
Compare this product
Characteristics
- Type
- mechanical
- Other characteristics
- compact, horizontal, vertical, lateral
- Clamping force
20 kN
Description
(without pull-down action)
Complete with fastening bolts ISO4014 (8.8) and nuts for T-slots DIN508.
The mechanical side clamp without pull-down effect can be used as a clamping element and as a stop element.
When used in conjunction with the base plate with slot 6498FT (73908), the side clamp can also be placed across the table slot.
The clamping force is achieved with optimum design and utilisation of the max. tightening torque of the fastening bolts.
The set screw is changeable.
Suitable set screws:
7110DKX-12xM12 Set screw with flat-faced ball, plain
7110DFX-12xM12 Set screw with flat-faced ball, ribbed
7110DS-12xM12 Set screw with point
- compact design
- horizontal and vertical use
