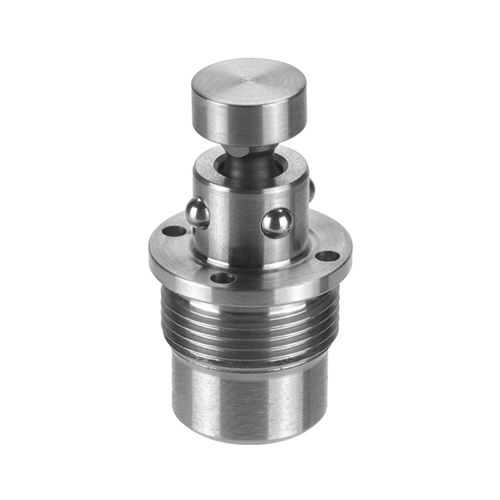

Modular clamping device 6214M-01

mechanicalthreaded body

Mechanical opening. Housing and piston hardened. Repetition accuracy < 0.1 mm. Mechanical zero point clamping system for set-up-time-optimised clamping during non-cutting machining. Note: The mechanical zero-point clamping system is opened by pressing the actuator knob with hand force. Interlock is achieved mechanically via spring force. A tool is not required for this. The base plate serves as the contact surface, into which the clamping module is screwed. An extended actuating pin with a height of 20 mm is available under the order no. 561391. A suitable mounting tool is available under the order no. 559439. Order numbers of the clamping sleeves: 559092 and 559093. * Please observe the installation instructions. On request: - Installation diagrams
