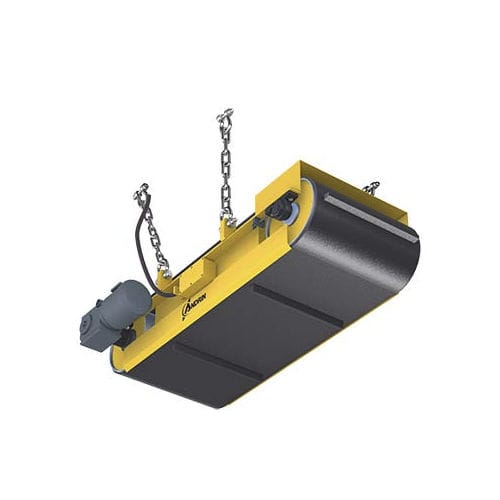

Electromagnetic separator OVBAP Overband

for bulk materialsfor ferrous metalsfor the recycling industry

Electromagnetic overbands with aluminium winding, OVBAPs may be used on all bulk products, on conveyors, vibrating lines or chutes. They are intended for : •protecting the plant against ferromagnetic parts, •refining and magnetic sorting. Their power enables them to work on average and thick layers of products with variable particle size and high ferrous parts content. They are mainly installed in : •sorting centres, incineration plants, and car crusher units, •quarries, mines and cement works, •the food - processing industry. TECHNICAL DESCRIPTION The magnetic circuit of an OVBAP consists of an ASAP magnet. This consists of a machine-welded yoke of high permeability, external pole and a steel central core, aluminium winding with reinforced insulation and a closed non-magnetic box. The central pole extension spreads the magnetic field on the magnet sides. The frame, consisting of two L steel sections, supports : •the ASAP magnet, •two rollers, convex machined, set on dustproof bearings, •geared motor and discharge belt, fitted with cross lugs, •belt tensioning system. The belt speed is specified according to the characteristics of the product to be processed and the conveyor speed.
