Diaphragm pressure switch SPAL seriesfor oil
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for oil
- Pressure range
Max.: 10.34 bar
(149.97 psi)Min.: 0.03 bar
(0.44 psi)- Switching power: current
4 A, 8 A, 15 A
- Process temperature
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)
Description

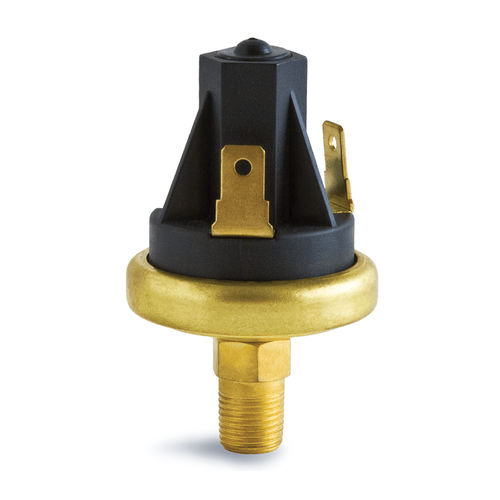

A simple and common pressure switch utilizing a polyimide diaphragm for extended duty applications. This pressure switch is widely used automotive applications for monitoring of engine functions and auxiliary devices.
Features
Gold plated silver alloy contacts
High current ratings
Works well in extreme temperatures
Very economical
Applications
Oil pressure switch
Fuel pressure switch
Exhaust pressure switch
Air brake switch
