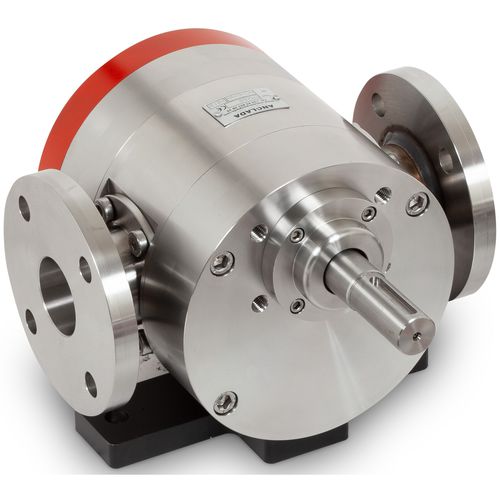

External-gear pump PM 280
for chemicalsfor food productsindustrial

External-gear pump - PM 280 - Anglada Pumps - for chemicals / for food products / industrial
External-gear pump - PM 280 - Anglada Pumps - for chemicals / for food products / industrial
External-gear pump - PM 280 - Anglada Pumps - for chemicals / for food products / industrial - image - 2
External-gear pump - PM 280 - Anglada Pumps - for chemicals / for food products / industrial - image - 3
Add to favorites
Compare this product


Characteristics

Technology
external-gear
Fluid
for chemicals, for food products
Domain
industrial, chemical, for the food industry, for the paper industry, for the textile industry
Applications
for transfer, metering, high-temperature
Material
stainless steel
Flow

Max.: 280 l/min
(73.96817 us gal/min)

Min.: 31.11 l/min
(8.21839 us gal/min)

Pressure

Max.: 10 bar
(145.038 psi)

Min.: 0 bar
(0 psi)

Head

Max.: 100 m
(328'01" )

Min.: 0 m
(0'00" )

Power

4 kW
(5.44 hp)

Max.: 4 kW
(5.44 hp)

Min.: 4 kW
(5.44 hp)

Description

The gear pumps of the PM series have a wide range of models that allow the transfer of flow rates ranging from 25 l / min to 280 l / min. This type of pumps are suitable for use in the most diverse sectors due to their design and configuration. It can also be optionally equipped with a heating chamber for those fluids that require, for optimal transfer, a temperature higher than that of the room temperature. These pumps are suitable for working in a wide range of applications thanks to their safety, reliability and easy maintenance. In turn, the versatility of the PM Series allows to be built with the right materials to work and handle the different fluids in the most varied industrial sectors such as the chemical, pharmaceutical, paper, textile and food industries.
