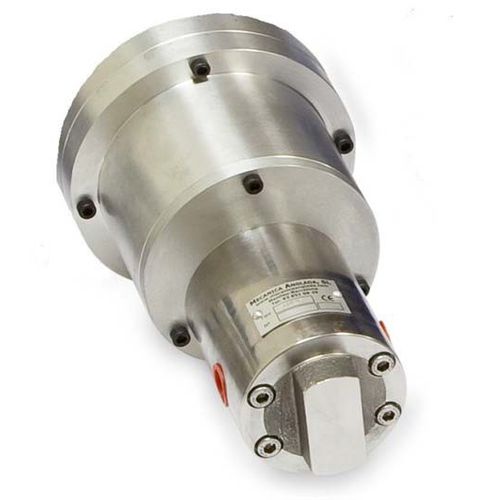

Gear pump AM 25for chemicalsfor food productsmagnetic-drive
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Fluid
- for chemicals, for food products
- Operation
- magnetic-drive
- Priming
- self-priming
- Domain
- industrial, chemical, for the food industry, for the pharmaceutical industry, for the paper industry, for the cosmetics industry, for the textile industry, for the printing industry
- Applications
- circulation, metering, for industrial applications, transfer, chemical process
- Material
- stainless steel
- Fluid specification
- for corrosive fluids, for low-viscosity fluids, for high-viscosity fluids, for high-viscosity products, for hot oil
- Protection level
- chemical-resistant
- Other characteristics
- low-noise, bidirectional
- Flow
Min.: 1.66 l/min
(0.43853 us gal/min)Max.: 25 l/min
(6.6043 us gal/min)- Pressure
Min.: 0 Pa
(0 psi)Max.: 1,000,000 Pa
(145.038 psi)- Head
Min.: 0 m
(0'00" )Max.: 10 m
(32'09" )- Power
0.75 kW
(1.02 hp)
Description
The gear pumps of the AM series have a wide range of models that allow the transfer of flow rates ranging from 3 l / min to 100 l / min. These pumps are suitable for working in a wide range of applications thanks to their safety, reliability and easy maintenance. In turn, the AM Series allows to be built with the right materials to work and handle the different fluids in the most varied industrial sectors such as the chemical, pharmaceutical, paper, textile and food industries.
