Differential pressure transmitter PAMS4711 - PAMS4712barometricvacuumpiezoresistive
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential, barometric, vacuum
- Technology
- piezoresistive
- Output
- analog
- Pressure range
2,000 mbar
(29.01 psi)Min.: 0 mbar
(0 psi)Max.: 2,000 mbar
(29.01 psi)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 85 °C
(185 °F)
Description
Measuring range
0 to 5 mbar...2 bar
Pressure type
Gauge, vacuum, absolute
Supply voltage
8...36 VDC
Output signal
4...20 mA; 0...10 VDC, 0...5 VDC
Accuracy [
0.5 FS
Temp. range [°C]
-25 to 85
Supplier
Pewatron
Product description

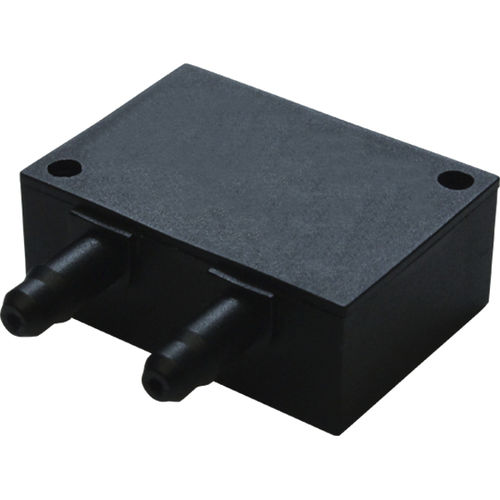

PAMS47xx is a series of miniaturized pressure transmitters suitable for industrial applications and high precision measurements. PAMS47xx comes in a robust plastic package and is ready to use. Pressure is either applied via
two barbed side ports for differential (relative)
or bidirectional differential pressure transmitter
types or via a single port for absolute or
barometric types. The electrical connection is realized with an M5 circular sensor connector. PAMS47xx’s package is dust- and water-tight conforming to IP67.
