Absolute pressure transmitter PAMS3011-3012

vacuumpiezoresistiveanalog

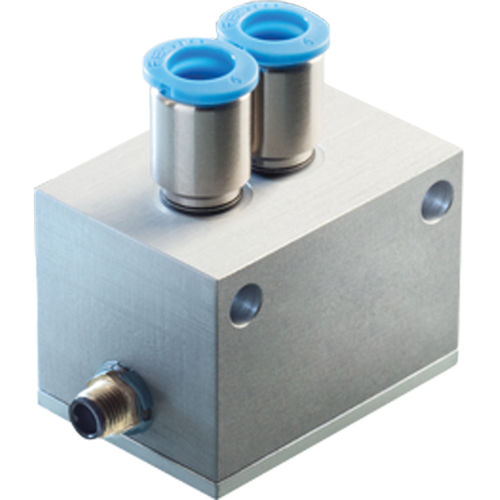

PAMS3011 is a series of robust pressure transmitters in a matchbox-sized IP67 metal package. This series is suitable for high precision measurements in industrial indoor and outdoor applications as well as in medical instrumentation. All sensors in this series provide an analog output signal of 0 .. 5 V and can be powered within a wide supply voltage range of VS = 8 .. 36 V. They are calibrated and temperature compensated in a wide temperature range of -25 .. +85°C. PAMS3011 comes in a rugged metal package with M5 female threads for pressure connection. Using standard M5 pressure fittings like barbed ports, hose or push-in fittings a wide variety of pressure connections can be established. The sensor’s electrical connection is realized with an M5 circular sensor connector. PAMS3011’s package is dustand water-tight conforming to IP67. The pressure transmitters in the PAMS3011 series are available for various pressure types and ranges: differential (relative) devices in pressure ranges from 0 .. 50 mbar up to 0 .. 10 bar, absolute pressure variants for 0 .. 1 bar and 0 .. 2 bar as well as a barometric type for 0.7 .. 1.2 bar. Bidirectional-differential devices for measurement of positive and negative differential pressure are available from -25 .. +25 mbar up to -1 ..+1 bar.
