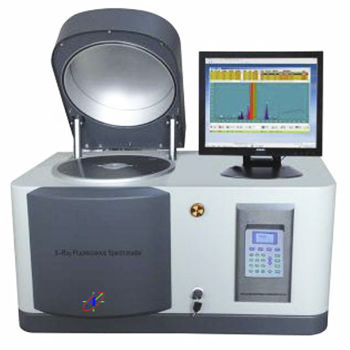

Fluorescence spectrometer ADX-9800

EDXRFfor precious metals analysis

The ADX9800 is a powerful EDXRF that has built in multiple collimators and for the various testing parameters. The vacuum chamber allows for highly precise results and the ability to test elements from Sodium (Na) to Uranium (U). Hardware SDD Detector Ultra High Resolution Detector Electro-refrigeration semiconductor detector with energy resolution: 130eV Energy response range: 1-50 keV Be window thickness: 50 μm It is used to detect the characteristic X-rays of the samples, and then collect the information and amplify it. X-ray Tube Service life is more than 20,000 hours Emitting X-rays towards the samples Target: Mo/Ag (please ask Angstrom for your application) High/Low Voltage Power Supply Tube Voltage: 5～50kV Tube Current: 5μA - 1000μA Supplying exclusive power to X-rays tube Voltage regulation/adjustment rate: 0.01% (from zero load to full load) Voltage stability of 8 hrs: 0.05% Multi-Channel Analyzer It is used to conduct data processing of the collected information, and transfer the results to the computer. High Resolution Camera In-Built High Resolution Camera for Sample Observation and Placement. Vacuum system Provide vacuum condition for the samples during the test. Vacuum degree reaches 10-2 Pa in 10 second. High vacuum area reaches 10-1 – 10-5 Pa.
