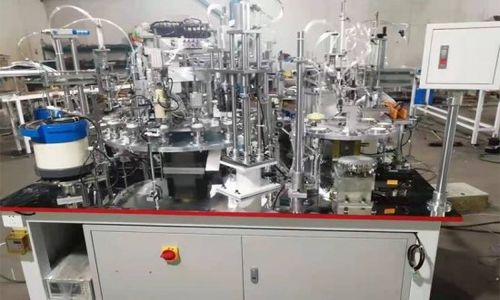

Automatic assembly machine CX-LED

for industrial applications

The technical parameters of LED A bulbs automatic assembly machine First. Overview of the whole machine 1. The LED bulb automatic assembly machine can meet the requirements of A60 bulb assembly. The external size of the machine is 2900*2800*1000, and one host operator is required. The equipment efficiency is 1500PCS/h, and the production qualification rate of the whole machine can reach 99%. 2. The automatic assembly machine has 16 station for assembly , and 8 stations for gluing and pressing covers. Adopt the cam divider equipped with one-motor and one-reducer driver for intermittent movement, and the station process uses PLC programming to control the cylinder manipulator to complete the work. Each process is divided reasonable time and easy to adjust. The PLC touch screen realizes human-computer interaction, which is simple and easy to learn. Second, the technological process description 1 One person puts the light source board and the bulb cup on the conveyor chain of pressing the light source board machine stations. 2 After the two persons on both sides of the loading bulb cup conveyor belt thread the edge wire and put them back into the conveyor belt stations. 3 At the end of the loading bulb cup conveyor belt equipped with manipulator, to place the bulb cups on the fixed station of the assembly line. 4 Turn the station plate to complete the processes of wire neatening ,base installation, wire cutting and bending, rivet installation, rivet pressing, lighting power test and base locking in sequence.
