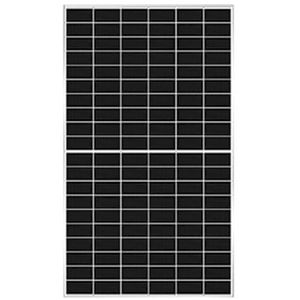

Monocrystalline silicon solar module HS-210-B120DS
CETUVIEC

Monocrystalline silicon solar module - HS-210-B120DS - Anhui Huasun Energy Technology Co., Ltd. - CE / TUV / IEC

Add to favorites

Compare this product

Characteristics

Technology: monocrystalline silicon
Certifications: IEC, CE, TUV
Peak power (Wp): 625 W, 630 W, 635 W, 640 W, 645 W
Open-circuit voltage: 45.1 V, 45.3 V, 45.5 V, 45.7 V, 45.8 V
Short circuit current: 17.3 A, 17.4 A, 17.5 A, 17.6 A
Max power voltage: 37.9 V, 38 V, 38.2 V, 38.4 V, 38.5 V
Max power current: 16.5 A, 16.6 A, 16.7 A, 16.8 A
Module efficiency: 22.08 %, 22.26 %, 22.44 %, 22.61 %, 22.79 %
Lenght: 2,172 mm
(86 in)
Width: 1,303 mm
(51 in)
Height: 35 mm
(1 in)
Weight: 35.3 kg
(77.82 lb)

Description

HJT 2.0 Technology Combining gettering process and single-side uc-Si technology to ensure higher cell efficiency and higher module power. -0.26%/C Pmax temperature coefficient More stable power generation performance and even better in hot climate. SMBB design With Half-Cut Technology Shorter current transmission distance, less resistive loss and higher cell efficiency. Up to 90% Bifaciality Natrual symmetrical bifacial structure bringing more energy Yield from the backside. Sealing With PIB based sealant Stronger water resistance, greater air impermeability to extent module lifespan. Higher reliability Industrial leading product and performance warranty, ensuring modules' consistent outstanding performance. Suitable for Utility proiect Lower BOS cost, Iower LCOE
