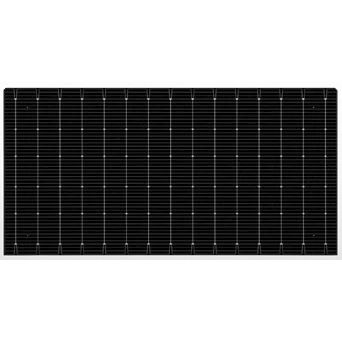

Monocrystalline silicon solar module HS-15BB-G12 245-252 Series
thin-filmIECCE

Monocrystalline silicon solar module - HS-15BB-G12 245-252 Series - Anhui Huasun Energy Technology Co., Ltd. - thin-film / IEC / CE

Add to favorites

Compare this product

Characteristics

Technology

monocrystalline silicon, thin-film

Certifications

IEC, CE, TUV

Peak power (Wp)

Max.: 5.56 W

Min.: 5.4 W

Open-circuit voltage

Max.: 0.7 V

Min.: 0.7 V

Short circuit current

Max.: 8.7 A

Min.: 8.7 A

Max power voltage

Max.: 25.2 V

Min.: 24.5 V

Module efficiency

25 %

Lenght

210 mm
(8 in)

Width

105 mm
(4 in)

Height

0 mm
(0 in)

Description

HJT solar cell is a new generation superior bifacial solar cell made out of N-type wafer, which combines merits of crystalline siliconand thin-film technology to form a single composite structure. As one of the most effective cell passivation technology in the market,HJT ensures that solar cells deliver high efficiency and great power even in hot climate. Higher Cell Efficiency Phosphorus fettering combines With nano-crystalline process to guarantee higher cell efficiency. Ultra-Iow temperature coefficiency ensures more power output in high temperature environment. No LID, No PID, lead to zero degradation. Maximum Module Power 15-busbar technology combines half-cell design to deliver higher energy output for maximum cost savings. Bifacial constructure ensures more sunlight captured and converted into power on the back Side. • Extreme Iow LID and PID supports reliability and longevity. Lower LCOE cost by HJT solar system
