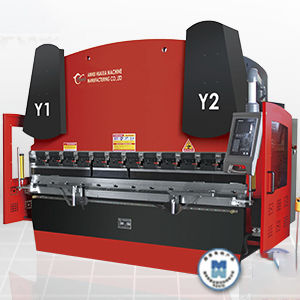

Electro-hydraulic press brake WD67K

CNC

Features ©The machine body is in an overall welded and overall processed structure, and ANSYS finlte element analysis software is appplied to main parts of the machine body for analysis,which has ensured the reliability of machine and the précision of entire machine. ©The numeric control System adpot Netherland DELEM Italian ESA, or Swiss CYBELEC Companies and so.able to achieve the functions of graphie programming for bending angle,compensation for angle amendment,automatic calculation also adjustment of bending pressure, automatic calculation of compensation for workbench distortion. extending length of workpieces, bending pressure for sole pressing, open distance, and automatic withdrawal of rear stopper,etc. The V axis is the axis of CNC control table and convex amount, can obtain the deflection compensation précisé on the working table length. With convex wedge convex table by a group with an inclined plane, each with convex wedge slope deflection curve of order is designed according to the sliding work table vertical plate, finite element analysis and. CNC System according to the load force of the workpiece bending size (the force causes the slider and the work table vertical plate deflection deformation), compensation calculation required, automatic control and relative displacement of convex wedge block, so as to effectively compensate the deflection slider and table upright plate deformation, bending workpiece can get the idéal.
