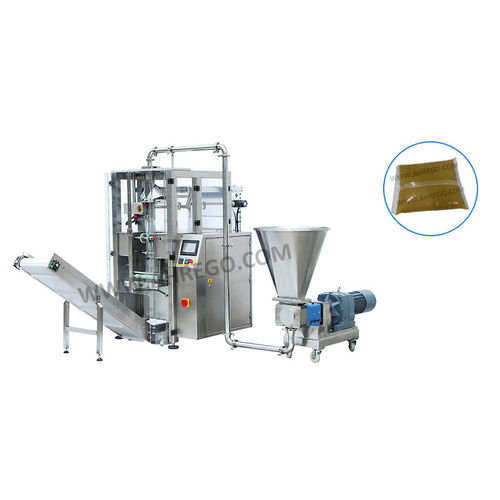

Vertical bagging machine DXDL5

weightPLC-controlled

- Features: 1. All parts contact to the product are made of stainless steel. 2. Simple operation on touch panel, no technical men are required. 3. PLC control and user-friendly panel, greatly improves precision, dependability and intelligence of the machine. 4. Easy adjustment of bag length and packing volume, detected by precise sensor. 5. Strong and tidiness bag sealing to improve the packing quality. 6. Synchronization working with lobe pump to keep accuracy and work continuously. 7. Double-belt film transportation, smoothly ,small friction, and little waste 8. Imported elements are used to ensure the quality and performance of the machine. 9. No Air expeller or Vacuum devices are needed to make airless bag. Specification: Model No. - DXDL5 Packing range - 1Liter - 5Liters Packing speed - 5-20bags/min Film width - 350mm-520mm Bag width - 160mm-240mm Bag length - 200mm-450mm, max.550mm Film roll diameter - Max.300mm Film thickness - 65micro-120 micro Film material - Heat sealable laminated film Power supply - 380V, 3phase / 50Hz / 2.5kw Air consuming - 0.8MPa Packed dimension - 1100*1380*1700(mm) Machine weight - 400kg
