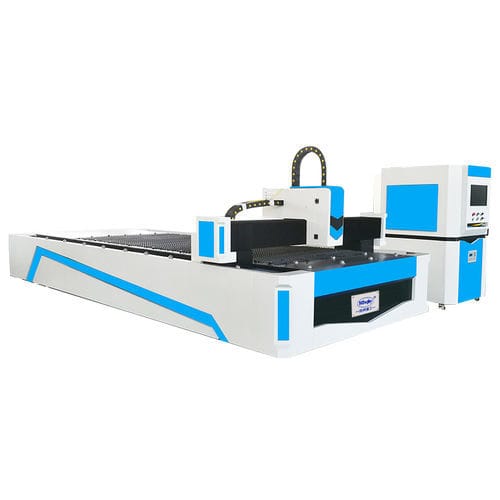

Fiber laser cutting machine RB-3015laserfor aluminumfor stainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser, laser
- Material
- for aluminum, for stainless steel, for carbon steel, for copper, for brass
- Product handled
- sheet metal
- Control type
- numerical control
- Other characteristics
- mechanical
- X travel
1,500 mm
(59.06 in)- Y travel
3,000 mm
(118.11 in)- Z travel
70 mm
(3 in)- Laser power
Max.: 2,200 W
Min.: 200 W
- Overall length
4,500 mm
(177 in)- Overall width
2,250 mm
(89 in)- Height
1,600 mm
(63 in)
Description
Fiber laser cutting machine adopts the advanced fiber laser output laser beam of high energy density, and focused on the workpiece surface, making areas on the workpiece are melting and gasify instantly by ultra fine focal spotlight; Automatic cutting is achieved by moving the light spot through the CNC mechanical system. It is one of the high-tech equipment with features of advanced optical fiber laser technology, numerical control technology, precision machinery technology.
Standard Components
1. Laser generator Wuhan Raycus or Germany IPG
2. Laser cutting torch Raytools
3. Cutting bed Steel plate welding
4. X, Y gear rack Germany ROR or Taiwan YYC
5. Guide rail Taiwan Hiwin
6. AC servo motor & driver Japan Fuji
7. Proportional valve Japan SMC
8. Reducer Japan SHIMPO
9. Gas circuit control Japan SMC
10. CNC system and software CYPCUT
11. Water cooling machine Guangzhou S&A
12. Dust Absorption set
Optional Components
1. Screw air compressor
2. Vacuum cleaner set
3. Voltage Regulator
4. Laser focusing lens
5. Laser protective windows
6. Laser ceramic rings
7. Laser Nozzles
