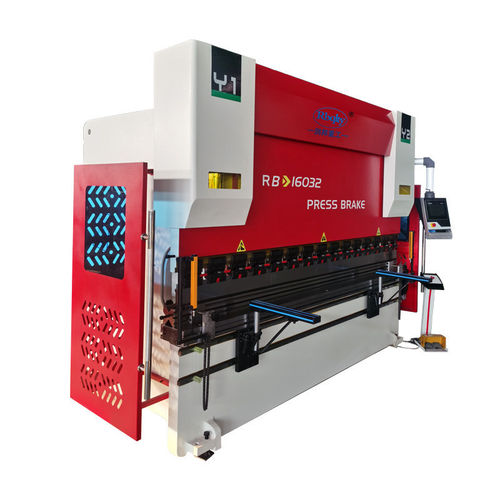

Electro-hydraulic press brake DA53T

CNC3-axis4-axis

1,Structure: 1)Complete steel-welded structure; 2)ANSYS finite element analysis software to ensure the reliability of the machine and the precision; 2, Main oil cylinders: 1)Closed loop control mode:Germany electro-hydraulic servo valve and imported grating ruler; 2)Totally different from traditional mechanical stop bending machines; 3)High precision of the glide position and bending; 4)Accurate and stable operation 3,Back gauge: 1)Imported functional components to ensure the stopping precision. 2)More functional multi-axis blocking is available according to customer's requirement. 4,Hydraulic system: 1)Integrated control system imported from Germany; 2)Decrease the installation of pipelines; 3)Ensure the working stability and better appearance. 5,Body sides: 1)C shaped plates are fitted on both sides; 2)The high precision grating ruler is on the C shaped plates; 3)Avoid the influences on bending precision arising from distortion of machine body during bending process. CNC DA-53T System Introduction Standard - Colour high brightness LCD display - 10.1" wide screen TFT - LED backlight - 1024 x 600 pixels - Industrial grade touch screen - Storage capacity 1 GB - Data backup / restore via USB - Integrated valve amplifier - Power-down memorisation - Profile-53TL offline software Main Functions · “Hot-key” touch navigation · 10.1" high resolution colour TFT · Up to 4 axes (Y1,Y2 + 2 aux. axes) · Crowning control · Tool / material / product library · Servo and frequency inverter control
