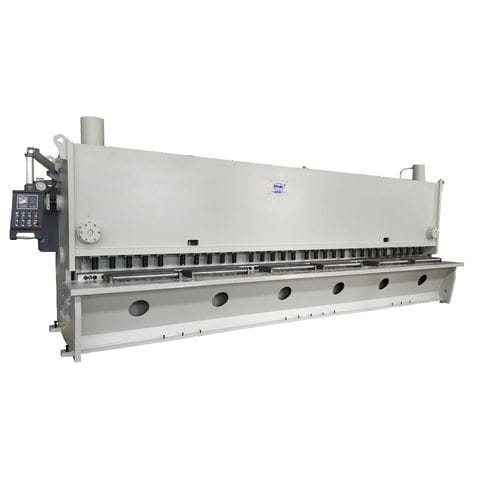

Hydraulic shear QC11K 12×6500
sheet metalguillotineprecision

hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Application
sheet metal
Type
guillotine
Other characteristics
precision
Plate thickness

Max.: 25 mm
(1 in)

Min.: 6 mm
(0.2 in)

Working length

Max.: 4,000 mm
(157.48 in)

Min.: 2,500 mm
(98.43 in)

Description

1、Adopting the integral welding frame structure and vibration aging treatment, the machine tool has good rigidity, high precision and good precision retention. 2、Using three points to support the rolling guide, the upper tool holder rolls in the rolling guide between the guide rail and turns the hand wheel to adjust the blade clearance, and the clearance value of the blade is displayed directly on the gap table. 3、The movable blade supports and four-edge long blades are convenient to adjust the uniformity of the blade clearance, improve the sheer quality and prolong the service life of the blade. 4、The series oil cylinder synchronizing system is adopted, the machine has uniform force. By adjusting the series oil cylinder, the shearing angle can be adjusted conveniently to meet the need of different shearing plate thickness. 5、The position of the rear stop is adjusted conveniently by the use of the mobile rear stop device and the E21S numerical control. 6、Hydraulic presser makes shearing more reliable. 7、Spherical ball support material table, convenient for the user to cut and feed. 8、The front stopper with a ruler perpendicular to the lower blade is suitable for the user's front positioning operation.
