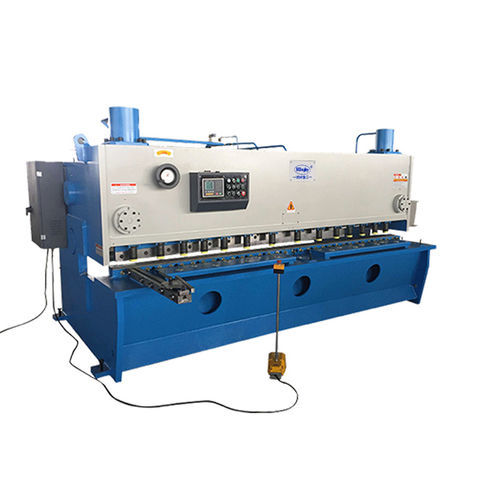

Hydraulic shear 6 x 2500

sheet metalguillotine

Steel-welded machine body with vibration stress relief, excellent rigidity and stability. Advanced hydraulic modular valve block with compact structure and less tube circuit increasing the reliability and maintainability Linked oil cylinders ensure consistent shearing angle during the shearing processing. Accumulator keeps return stroke accurately and rapidly; and gap between blades can be adjusted in an accurate, rapid and convenient way by hand wheel. Shearing angel is adjustable, which decreases the distortion of sheet; convenient and accurate back gauge position electric control and display. Rolling material support balls decreases scratch of sheet and reduces frictional resistance. The machine used is called a squaring shear, power shear, or guillotine. The machine may be foot powered, less commonly hand powered, or mechanically or hydraulically powered. It works by first clamping the material with a ram. A moving blade then comes down across a fixed blade to shear the material. Optional Numeric Control System Nanjing Estun E21S E200PS Back gauge controlling; General motors control; Intelligent positioning;; Two programmable digital output; Work piece counting 40 program memory 25 steps for each program; Unilateral positioning; Concession function One key to parameter backup and recovery; Metric system; Chinese/English. DAC310 Holland Delem 1. Servo control technology; 2. Bright LCD display, 128 x 64 pixels; 3. Blades gaps controlling; 4. Cutting length limiting; 5. Back gauge actual and programmed position Displaying. DAC360
