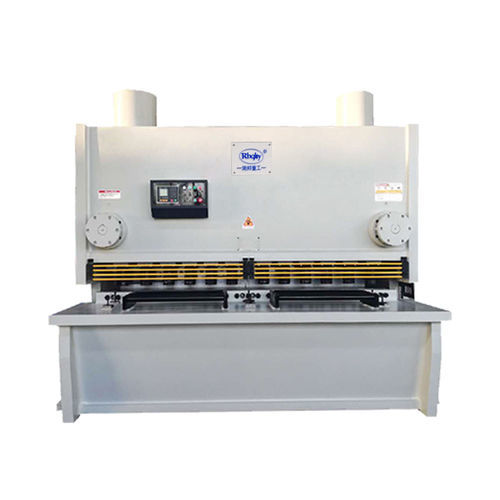

Hydraulic shear

sheet metalguillotineCNC

1、Blocking behind press positioning control 2、Intelligent positional function 3、Unidirectional and bidirectional positioning function,eliminating the screw clearance effectively 4、Return to escape function 5、Automatic search reference point feature 6、Parameter a key backup and restore function 7、Quick location teaching function 8、40 multi-step program storage space,each program has 25 steps 9、Power failure protection Components hydraulic transmission, pendulum-type tool holder. The overall welding of the frame is hard and durable, and the use of a nitrogen cylinder returns smoothly and rapidly. It has the function of stepless adjustment stroke. The amount of upper and lower blade edge clearance is adjusted by the handle, and the gap of the blade is even and rapid. NC control system and position encoder, inverter, closed-loop control system, speed, high positioning accuracy, good stability, can accurately ensure the accuracy of the back gauge displacement size, while the CNC system has precision compensation and automatic detection A variety of additional features. STANDARD EQUIPMENTS √ Hardened blades. √ E21S controller. √ 250mm throat depth. √ 600mm motorized backgauge system with 0,1 mm accuracy. √ 800mm side gauge and front support arms. √ Metric and inch rulers. √ Front, side and back safety panels which are suitable for CE norms. √ Sheet sliding system. √ Schneider Electric System. √ Rexroth hydraulic system.
