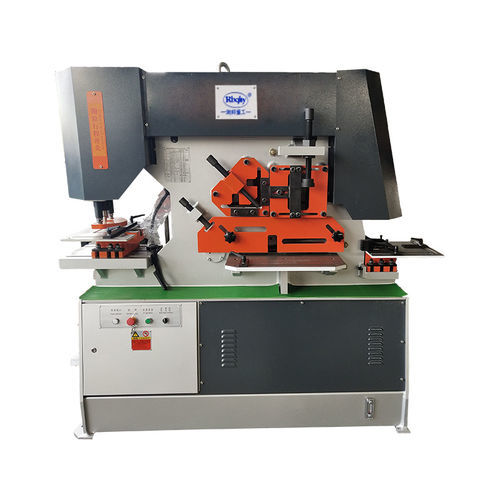

Automatic ironworker Q35Y-40

hydraulicbartube

While not meant for accuracy or high production needs, an Ironworker can make quick work of many different types of materials and perform many different processes necessary in a Fab Shop. Materials like: Plate, Tube, Angle and Rod stock can all be processed on an Ironworker. Capable of Punching, Shearing, Bending, Notching and Coping (a type of shearing) an Ironworker is an extremely flexible, versatile and necessary machine in any Fabrication or Weld Shop. Standard function 1. Robust and accurate steel frame 2. Large punch table with scales 3. Removable bolster for punching flanges and channel and beam 4. 2 independent hydraulic cylinders 5. 2 shielded foot controls 6. 2 Separate Die Openings for over sized punching 7. 5 working stations for wide applications 8. power inching on all 5 work stations 9. plate shear support table and notching table 10. adjustable stroke controls with indicators on both cylinders 11. punching machine: Movable work light Optional function 1. optional overload protection on hydraulic system 2. optional electric back gauge 3. optional bending attachment 4. optional two cylinder works simultaneously Machine components Grease seal: Japan NOK Oil cylinder: Anhui Wuyang Hydraulic: German BOSCH Gear Pump--Shanghai HANGFA Motor: German Siemens Electric system: France Schneider; List of the standard tooling 1. 1 set of punching tooling (single hole punching) 2. 1 set of round bar square bar 3. 1 set of plate cutting 4. 1 set of angle steel cutting 5. 1 set of notching, corner cutting
