Rotary damper Q43X series
mechanicalfor furniturefor automatic machines

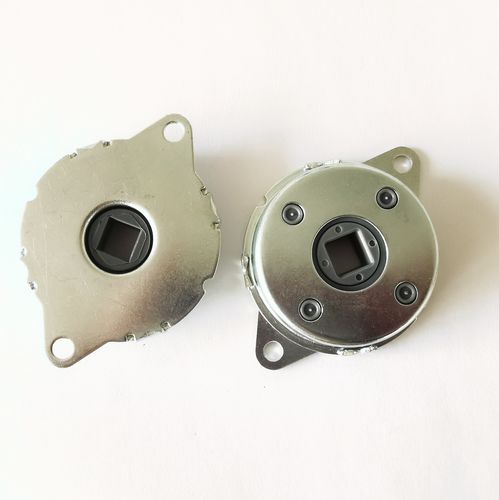

Rotary damper - Q43X series - Anhui Tian Yida (TYD) Technical Trading Co., Ltd - mechanical / for furniture / for automatic machines
Rotary damper - Q43X series - Anhui Tian Yida (TYD) Technical Trading Co., Ltd - mechanical / for furniture / for automatic machines
Rotary damper - Q43X series - Anhui Tian Yida (TYD) Technical Trading Co., Ltd - mechanical / for furniture / for automatic machines - image - 2
Add to favorites
Compare this product


Characteristics

Function
rotary
Technology
mechanical
Applications
for furniture, for automatic machines, for hinges, appliance, for automobiles, for the automotive industry, for electronics, parts, cabinet, hospital bed, 3D motion
Material
POM, zinc-plated steel
Stroke

Min.: 1 nm

Max.: 3 nm

Diameter

42.5 mm
(1.7 in)

Description

TYD rotary dampers provide smooth mechanical motion damping using silicone fluid resistance. Helping to protect expensive, delicate equipment and enclosures from damage caused by abrupt panel, door or draw closure they are tough and reliable with a life of over 50,000 cycles. Suitable for a diverse range of applications including Computer disk drives, CD players and delicate instrumentation equipment. Q43X has two types: One-directional Rotating type: Output torque range: 1Nm to 2 Nm Rotating Direction: Clockwise or Counter Clockwise Bi-directional Rotating type: Output torque range: 2 Nm to 4 Nm Rotating Direction: Both Clockwise and Counter Clockwise · Rated torque measured at a rotation speed of 20rpm at 23°; · Torque can be customized by changing the oil viscosity. · Max. rotation speed: 50 r/pm · Max. cycle rate: 12cycles/min (1 cycle is CW 360° CCW360°) · Operating temperature: -10~50℃ · Weight: 46g±2g
