Chamber furnace RT3 series

annealingquenchingtempering

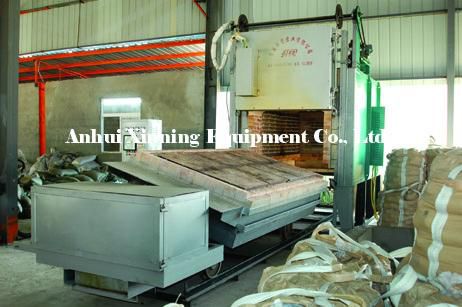

RT3 series of full-fiber bogie-hearth resistance furnace is mainly applied to quenching, annealing and tempering and other heating processes of high chromium and high manganese steel casting, mould steel, roller, steel ball, crushing hammer and wear-resistant lining plate. 1. Rated power: 380kw 2. Rated temperature: 1200℃ 3. Uniformity of temperature control: ±3℃ 4. Working dimension: 2400×1100×800（mm） 5. Rated voltage: three phases, 380V 6. No-load heating-up time: ≤2.5h 7. Maximum loading capacity: 6T 8. Lining materials: ceramic fiber cotton (high aluminum type) 9. Material of furnace bottom plate: NiN7 10. Temperature-control component: thyristor 11. Heating zone: Zone 3 Installed with hydraulic top-type pump, the trolley can turn over automatically, and the turnover speed is controlled in one minute.
