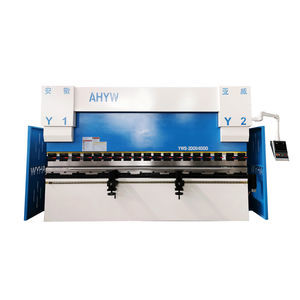

Electro-hydraulic bending machine YWB-200T/6000 DA53T

hydraulicsheet metalCNC

Electro-hydraulic servo CNC bending machine YWB-200T/6000, electro-hydraulic proportional servo synchronization to ensure the accuracy of repeated operations; equipped with Dutch DELEM DA53T CNC system, imported grating ruler, electrical components, hydraulic system group, and other well-known brands accessories with good performance. Control Form: CNC Power Type: Hydraulic Object Material: Metal Applicable Industries: Universal Scope of Application: Universal Performance Characteristics 1. It adopts electro-hydraulic proportional servo synchronous structure, which can be controlled at any point in the upper knife stroke, the repeatability is up to ±0.01mm, and the parallelism is up to 0.02mm; 2. The lower table adopts hydraulic deflection compensation cylinder, and the lower table is equipped with a table compensation mechanism for over 250 tons; the upper mold is equipped with a mold quick clamping device; 3. Equipped with the computer system, grating scale, hydraulic system valve block assembly and servo motor of the Netherlands DELEM company (also can be equipped with Swiss CYBELEC/Italy ESA), all imported with good performance and strong anti-eccentric load capacity ; 4. The back gauge adopts ball screw, linear guide and servo motor, which has high repeatability and fast positioning accuracy. 5. CNC machines with more than seven axes, manipulators or flexible sheet metal processing centers can be customized.
