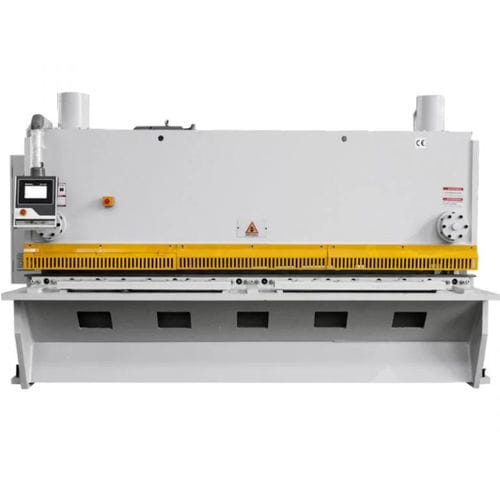

Mechanical shear

sheet metalguillotineswing-beam

Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment. Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany, The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity. The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode. Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation. Estun E21sNC control System Powered Back gaugeX-axis DELTA Inverter controlled back gauge HIWIN Ball screws & Polished rod with 0,05mm accuracy. Squaring Arm and Front Support Arms Germany Bosch-Rexroth Hydraulic Germany EMB Tubing connector Germany Siemens Main Motor Tele mecanique/Schneider Electrics Hydraulic &Electrical overload protection Cutting Line Illumination and wire for shadow line cutting Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si).
