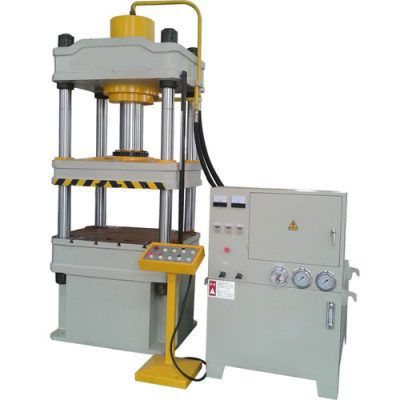

Hydraulic press YAN32-200
formingcolumn typesemi-automatic

hydraulic press
hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
forming
Structure
column type
Control
semi-automatic
Other characteristics
vertical
Applications
for production
Force

2,000 kN

Stroke

700 mm
(27.559 in)

Max. pressure

Max.: 25 MPa

Min.: 0 MPa

Working speed

12 mm/s

Return speed

52 mm/s

Approaching speed

100 mm/s

Hydraulic pump power

15 kW

Weight

11,000 kg
(24,251 lb)

Description

This machine is used to suppress technology for materials with plasticity. This machine has independent actuating unit and electric system, as well as adopts centralized control with button, which can realize two kinds of operating modes of inching and semi-automatic. The machine body is composed of beam slider, table and column, etc., with good rigidity and high precision. The column bushing material is HT250 to increase allowable surface pressure, reduce friction and enhance service life. Hydraulic system should adopt plug-in mounting integrated system with advantages of sensitive motion, reliable work and excellent sealing property, etc. Press is equipped with two kinds of operating modes of inching and semi-automatic. It is equipped with centralized control panel, where arrange necessary action button and option switch.
