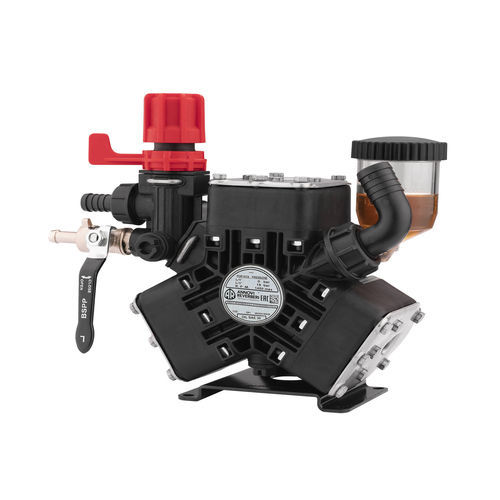

Diaphragm pump AR 20 LFP SP GCIoilwith electric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- oil
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- industrial
- Applications
- for low-pressure applications
- Material
- stainless steel, polypropylene
- Other characteristics
- low-pressure, reinforced
- Flow
20 l/min
(5.28344 us gal/min)- Pressure
20 bar
(290.075 psi)- Fluid temperature
60 °C
(140 °F)- Length
197 mm
(8 in)- Width
295 mm
(11.61 in)- Height
233 mm
(9.17 in)- Weight
4 kg
(8.82 lb)
Description
Three-diaphragm pump with reinforced Polypropylene circuit, Kynar/AISI 316 valves (LFP version), AISI 316 diaphragm mounting components, Viton seals.
Version: SP (cylindrical with shaft key), CR (reduction gearbox for internal combustion engine), EL (direct coupling to electric motor).
Integral or remote Polypropylene pressure regulator with bypassing release lever.
