- Hydraulics - Pneumatics
- Pump
- Diaphragm pump
- Annovi Reverberi

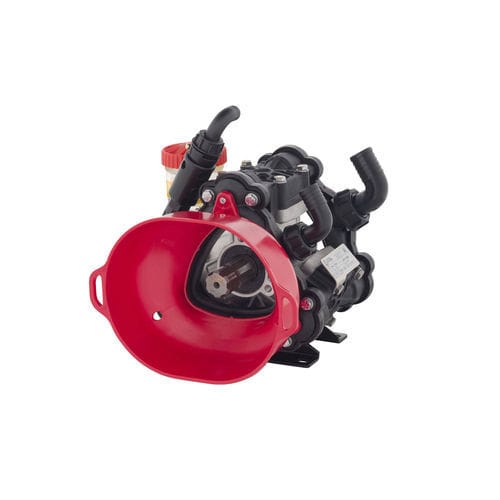

Diaphragm pump AR 75 LFP Coilwith electric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- oil
- Operation
- with electric motor
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- drainage, for low-pressure applications
- Material
- stainless steel
- Other characteristics
- reinforced
- Flow
70 l/min
(18.49204 us gal/min)- Pressure
15 bar
(217.557 psi)- Power
2.6 ch
(2.6 hp)- Fluid temperature
60 °C
(140 °F)- Length
282 mm
(11 in)- Width
316 mm
(12.44 in)- Height
325 mm
(12.8 in)- Weight
9.5 kg
(20.94 lb)
Description
Semi-hydraulic three-diaphragm pump. Parts in contact with pumped liquids in reinforced Nylon, Kynar and AISI 316 L. Diaphragms in BlueFlex™. Seals in Viton® AISI 304 metal fasteners. Plug for drainage of liquid from the circuit before winter storage. Complete with safety valve with re-arm and cardan protection.
