Diaphragm pump AR 713 AP C/SP BlueFlex™
oilwith electric motorstationary

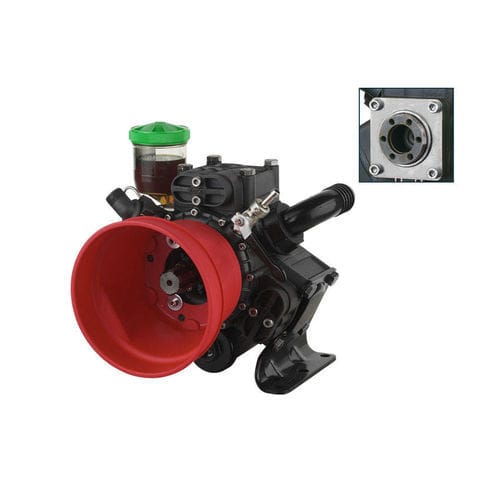

Diaphragm pump - AR 713 AP C/SP BlueFlex™ - Annovi Reverberi - oil / with electric motor / stationary
Diaphragm pump - AR 713 AP C/SP BlueFlex™ - Annovi Reverberi - oil / with electric motor / stationary
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Fluid
oil
Operation
with electric motor
Mobility
stationary
Domain
industrial
Applications
high-pressure, drainage, spraying
Material
plastic, metal
Other characteristics
heavy-duty, sensor
Flow

76 l/min
(20.07708 us gal/min)

Pressure

40 bar
(580.151 psi)

Power

7.3 ch
(7.3 hp)

Fluid temperature

60 °C
(140 °F)

Length

360 mm
(14 in)

Width

472 mm
(18.58 in)

Height

335 mm
(13.19 in)

Weight

20.5 kg
(45.19 lb)

Description

Semi-hydraulic three-diaphragm pump, for use on sprayers for high pressure pesticide spraying in orchards and vineyards. Parts in contact with pumped liquids in anodized aluminium, and AISI 303/304. Diaphragms in BlueFlex™. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking. Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit. Remote level monitoring sensor on request. Remote oil tank installation kit available on request. Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm. New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions. Spherical sector profile valves for lower flow resistance and improved volumetric efficiency. Mass-produced safety valve and cardan protection. Metal fasteners with galvanised finish. Available with reduction gearboxes for internal combustion engines and flanges for hydraulic motors, hydraulic pumps, overgears.
