Ozone test cabinet SIM6010-TMhumiditytemperaturecorrosion
Add to favorites
Compare this product
Characteristics
- Controlled parameter
- temperature, humidity, ozone
- Test type
- ozone resistance, analysis, corrosion, vibration, solar simulation, UV light aging
- Application domain
- for the aeronautical industry
- Product applications
- for electrical equipment, for automobiles
- Configuration
- floor-standing, compact, on casters
- Light source
- UV
- Options and accessories
- with manually dosing of SO2
- Other characteristics
- stainless steel, alternating, automatic
- Capacity
120 l
(32 gal)- Length
600 mm
(23.62 in)- Width
350 mm
(13.8 in)- Depth
600 mm
(24 in)
Description

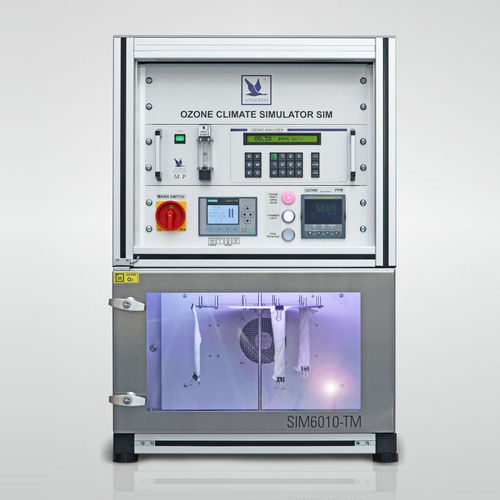

The test system comprises a stainless steel chamber with a large window as well as a rotation disk for moving the textile samples. The test conditions are automatically controlled by a PID controller. The ozone is measured with a single beam photometer – selectively and without cross-sensitivities to solvents (VOC). The chamber door can be locked and sealed with corrosion-free stainless steel door locks. For safety, the system comprises an ozone destroyer, an activated carbon filter and an interior light as well as a release signal for opening the chamber.
+ Color fastness testing according to AATCC109 and ISO 105-G03
Testing range: 0.001 – 9.999 ppmv
Chamber volume: 120 Liter
Chamber dimensions: L600 x D600 x H350 mm
PLC brand: SIEMENS LOGO TD
Protection degree of enclosure: IP65
