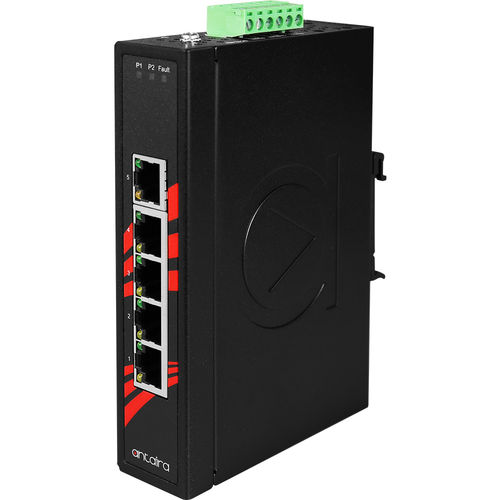

Unmanaged ethernet switch LNX-500A-T

5 portsDIN railwall-mount

Antaira Technologies LNX-500A-T Wide Temperature Operating Industrial Ethernet Switch is a leading low price solution for all harsh environment automation or industrial networking projects. This Fast Ethernet supporting 5 port switch supports 10/100 Mbps Auto-Negotiation and has a wide DC power input design (12 – 48VDC) to allow for all types of applications such as on-vehicle or panel designs. LNX-500A-T has a wide operating temperature of -40° to 75° C. Each port on LNX-500A-T has two LED lights to easily indicate link status and transmission speed. This ruggedized Ethernet switch also supports Auto MDI/MDI-X function and is also UL Class 1, Division 2 certified for oil and gas applications. LNX-500A-T is packaged in a slim and compact size while being secured in a rugged IP-30 case that is DIN-RAIL ready for industrial applications. Features Network broadcast storm protection 5-Port 10/100Tx RJ45 Fast Ethernet Supports Auto MDI/MDI-X Function Store-and-Forward Switching Architecture 2K MAC Address Table Surge Protection: 2,000 VDC support ESD Protection: 6,000 VDC support Redundant Power Input Design – 12~48VDC Built-in 1 relay output for Port Break Alarm IP30 Rugged Aluminum Case Design DIN-Rail and Wall Mount support Operating Temperature range - STD: -10° to 70° C, EOT: -40° to 75° C 5-Year Warranty
