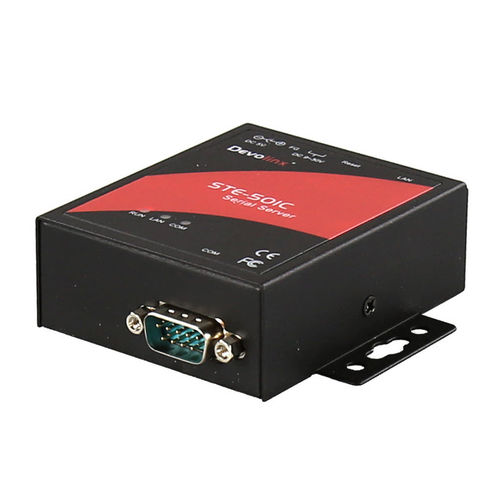

RS-232 device server STE-501C
RS-485RS-422Ethernet TCP/IP

RS-232 device server - STE-501C  - Antaira Technologies - RS-485 / RS-422 / Ethernet TCP/IP
RS-232 device server - STE-501C  - Antaira Technologies - RS-485 / RS-422 / Ethernet TCP/IP
RS-232 device server - STE-501C  - Antaira Technologies - RS-485 / RS-422 / Ethernet TCP/IP - image - 2
RS-232 device server - STE-501C  - Antaira Technologies - RS-485 / RS-422 / Ethernet TCP/IP - image - 3
RS-232 device server - STE-501C  - Antaira Technologies - RS-485 / RS-422 / Ethernet TCP/IP - image - 4
RS-232 device server - STE-501C  - Antaira Technologies - RS-485 / RS-422 / Ethernet TCP/IP - image - 5
RS-232 device server - STE-501C  - Antaira Technologies - RS-485 / RS-422 / Ethernet TCP/IP - image - 6
Add to favorites
Compare this product


Characteristics

Bus
RS-232, RS-485, RS-422, Ethernet TCP/IP
Output bus
Ethernet
Other characteristics
industrial, 1-port

Description

The STE-501C is a single port gateway between Ethernet (TCP/IP) and Serial signal communications. It allows almost any serial device to be connected to a new or existing Ethernet network. By encapsulating serial data and transporting it over Ethernet, the STE-501C offers full-duplex, bi-directional data transmission transparent between serial port and Ethernet network. Capable of using either RS232, RS422 or RS485 serial communication standards the STE-501C is ideal for upgrading industrial serial devices onto a Ethernet network. Features Rugged Metal Case with DIN-Rail / Wall-Mount 15 KV ESD Protection for Serial Signals 10/100Mbps Fast Ethernet Full Duplex Auto Negotiation Supports Multiple Link Mode with TCP Server/Client, UDP, and Virtual COM Mode Monitor, Manage, and Control Industrial Field Devices Remotely Configurable via Built-in Web Server, Serial Console, or Telnet Windows Based Utility for IP Configuration Upgradeable Firmware from Remote-PC via Ethernet
