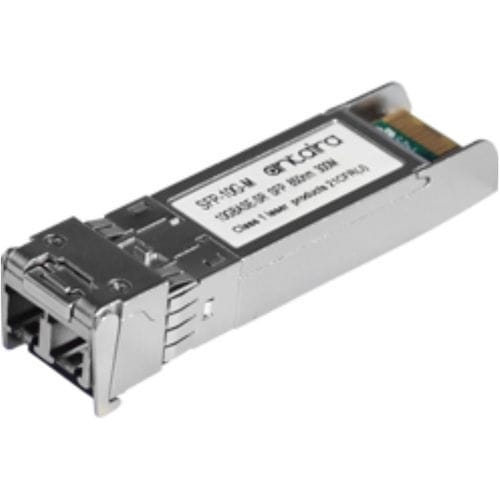

Fiber optic transceiver SFP-10G-M

monitoringmultimodedata

The SFP-10G-M is designed to transmit and receive optical data over 50/125 um or 62.5/125 um multimode optical fiber. The transmitter converts 10Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 10GBASE-SR standard. Features 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module "SFP+" 850nm VCSEL transmitter, PIN photo-detector 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers Operating case temperature: 0 to 70°C All-metal housing for superior EMI performance Low power consumption Advanced firmware allow customer system encryption information to be stored in transceiver Cost effective SFP+ solution, enables higher port densities and greater bandwidth
