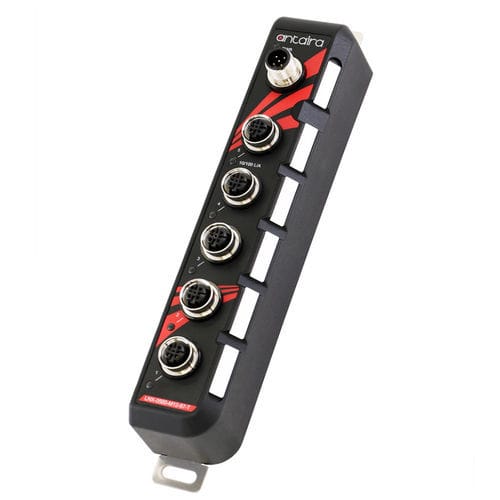

Unmanaged ethernet switch LNX-0500-M12-67-T

5 portsDIN railstandard

Antaira Technologies’ LNX-0500-M12-67-T is a 5-port 10/100Tx M12 IP67 industrial switch that meets the highreliability requirements demanded by industrial applications. It features operating temperature of -40° to 70° C, which allows this device to be used in various industrial environments. Its M12 connectors ensure a tight, robust connection and guarantees reliable operation in applications that are subject to high vibration and shock in environments containing dust, liquid, or laden with gas. Features 5*10/100Tx Fast Ethernet M12 (A-coded) connector with IP67 Rated Protection IP67 Rugged Plastic Case Design M12 FE Port Support Auto MDI / MDI-X Function Auto Negotiation Speed, Half / Full Duplex Store-and-Forward Switching Architecture Redundant Power Input: 12~48VDC Power Polarity Reverse Protection Overload Current Protection DIN-Rail or Wall Mountable 5-Year Warranty Package Content 1 - DIN-Rail kit with screws 1 - LNX-0500-M12-67-T 1 - Quick Installation Guide 6 - M12 protective caps 6 - Port labels
