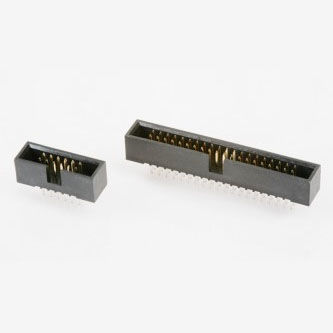

SMT connector TMBP-127-XX-CMS-DdataPins HeaderHE10
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- Pins Header, HE10, SMT
- Shape
- rectangular, straight, low-profile
- Connection type
- male
- Electrical characteristics
- multipole, AC
- Material
- nylon
- Product applications
- board
- Primary current
1 A
- Voltage
500 V
- Pitch
1.27 mm
(0.05 in)
Description
Box header SMT type pin 0.40 mm
Technical specifications
Current rating : 1.0 A
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Contact : copper alloy
Plating : gold or selective
Insulator : nylon-6T, UL94V-0
