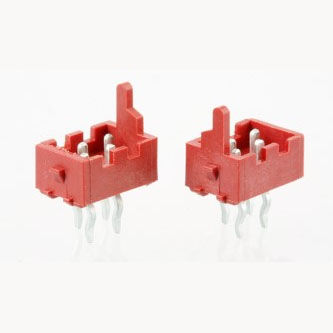

Micro connector MM-M-D-XX-TdataPins Headerstraight
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- Pins Header
- Shape
- straight
- Connection type
- male
- Electrical characteristics
- multipole, AC, DC
- Material
- plastic
- Product applications
- board
- Other characteristics
- micro, high-temperature
- Primary current
1 A
- Voltage
250 V
Description
Micro match male straight type
Technical specifications
Current rating : 1.0 A
Voltage rating : 250 Volts AC, DC
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -40°C to +105°C
Max processing temperature : 235°C during 5 sec
Contact : phosphor bronze
Plating : tin
Insulator : high temperature plastic, UL94V-0
