Wire-to-board connector AM1C-125-XX-T-PVDdatarectangularstraight
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- wire-to-board
- Shape
- rectangular, straight, right-angle
- Connection type
- male
- Electrical characteristics
- multipole, AC, DC
- Primary current
1 A
- Voltage
100 V
- Pitch
1.25 mm
(0.049 in)
Description

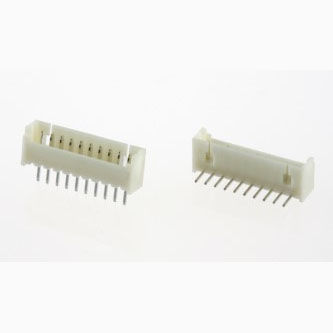

Wafer straight & right angle type with walls
Technical specifications
Current rating : 1 A AC, DC
Voltage rating : 100 Volts AC, DC
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -25°C to +80°C
Max processing temperature : 235°C during 5 sec
Contact : phosphor bronze
Plating : tin
Insulator : nylon-6T, UL94V-0
